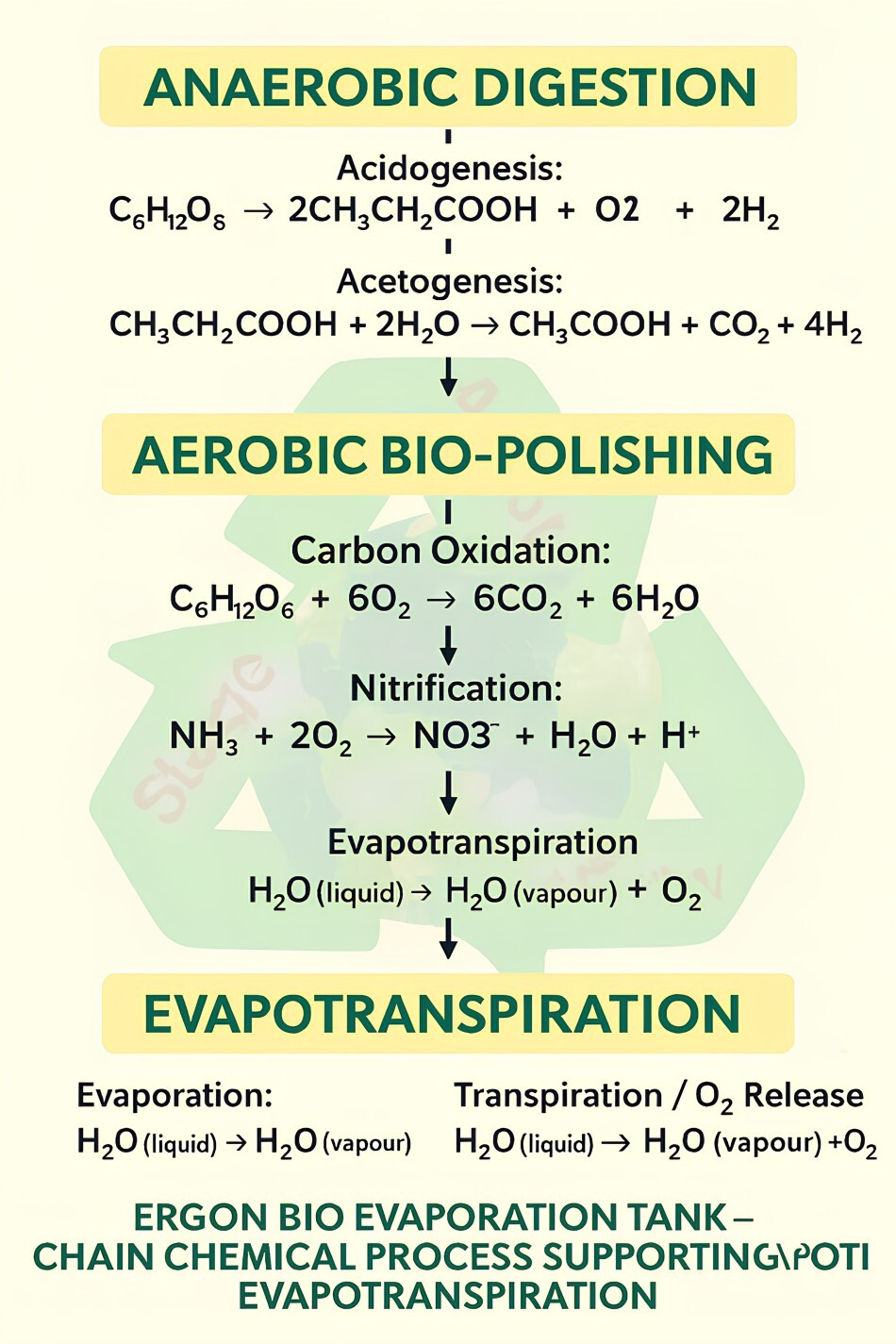

🌿Ergon Bio Tank - Flow Chart Eco Friendly Process
🔹 Stage I – Anaerobic Digestion Ergon Bio Collection Process
During acidogenesis, complex organic compounds such as carbohydrates are biologically broken down into volatile fatty acids and hydrogen gas under oxygen-free conditions. This stage initiates liquefaction of organic solids and reduces sludge volume at the source.
Complex organic matter is converted into volatile fatty acids
Sludge begins to liquefy
Pathogens are suppressed
No oxygen, no power, no smell
In this phase, volatile fatty acids are converted into acetic acid, carbon dioxide, and hydrogen. The wastewater becomes biologically stable, odourless, and free-flowing, eliminating the need for mechanical sludge removal.
Outcome: Significant BOD & COD reduction, sludge liquefaction, no odour, no electricity.
Fatty acids are converted into acetic acid
Organic load becomes biologically stable
Sludge volume is minimized permanently
🔹 Stage II – Aerobic Bio-Process Ergon Bio Evaporation Process
Residual organic matter is oxidized by aerobic bacteria in the presence of oxygen. This reaction converts remaining biodegradable pollutants into carbon dioxide and water, achieving final BOD and COD polishing.
Residual BOD & COD removed
Effluent becomes odourless and stable
Ammoniacal nitrogen is biologically oxidized into nitrate, eliminating ammonia-based odour and toxicity. This ensures environmentally safe treated water before final disposal.
Outcome: Removal of residual BOD, COD, and ammonia; odour-free effluent.
Ammonia converted to nitrate
Prevents toxicity and odour
Improves environmental safety

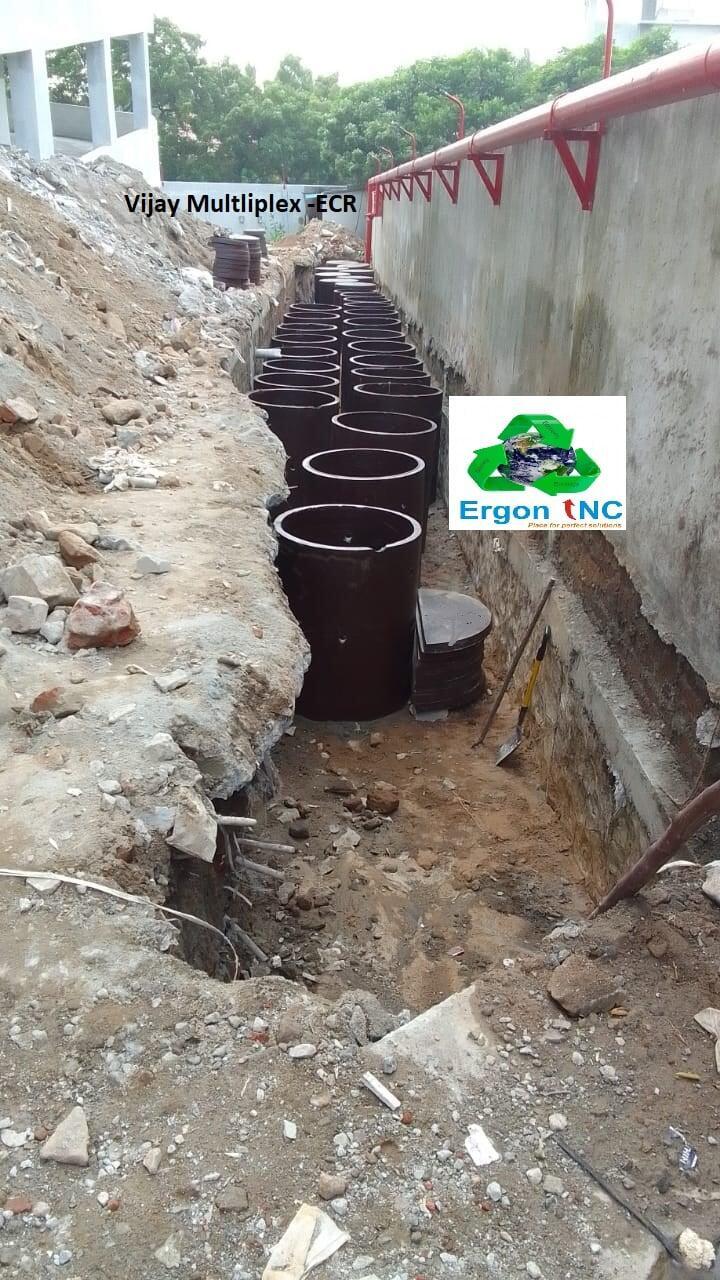

🔹 Stage II plus – Evapotranspiration (ET) ZERO Liquid Discharge (ZLD)
Treated water evaporates naturally due to ambient temperature and airflow, eliminating liquid discharge without pumps or energy.
Transpiration & Oxygen Release
Biological Process: H₂O (liquid) → H₂O (vapor) + O₂
Plants absorb treated water and release moisture and oxygen into the atmosphere, enhancing micro-climate and completing the natural water cycle.
Water released to atmosphere
Plants enhance oxygen & micro-climate
No outlet, no reuse line, no discharge
🌿 Final Outcome – Ergon System Advantages
✔ Odourless operation
✔ Zero electricity requirement
✔ Zero chemical usage
✔ ZERO Liquid Discharge (ZLD)
✔ Eco-friendly & sustainable
✔ CPHEEO / NBC / IGBC aligned

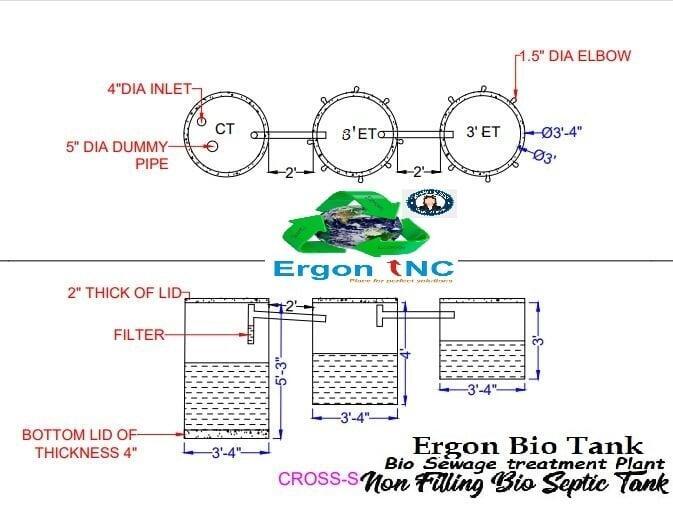

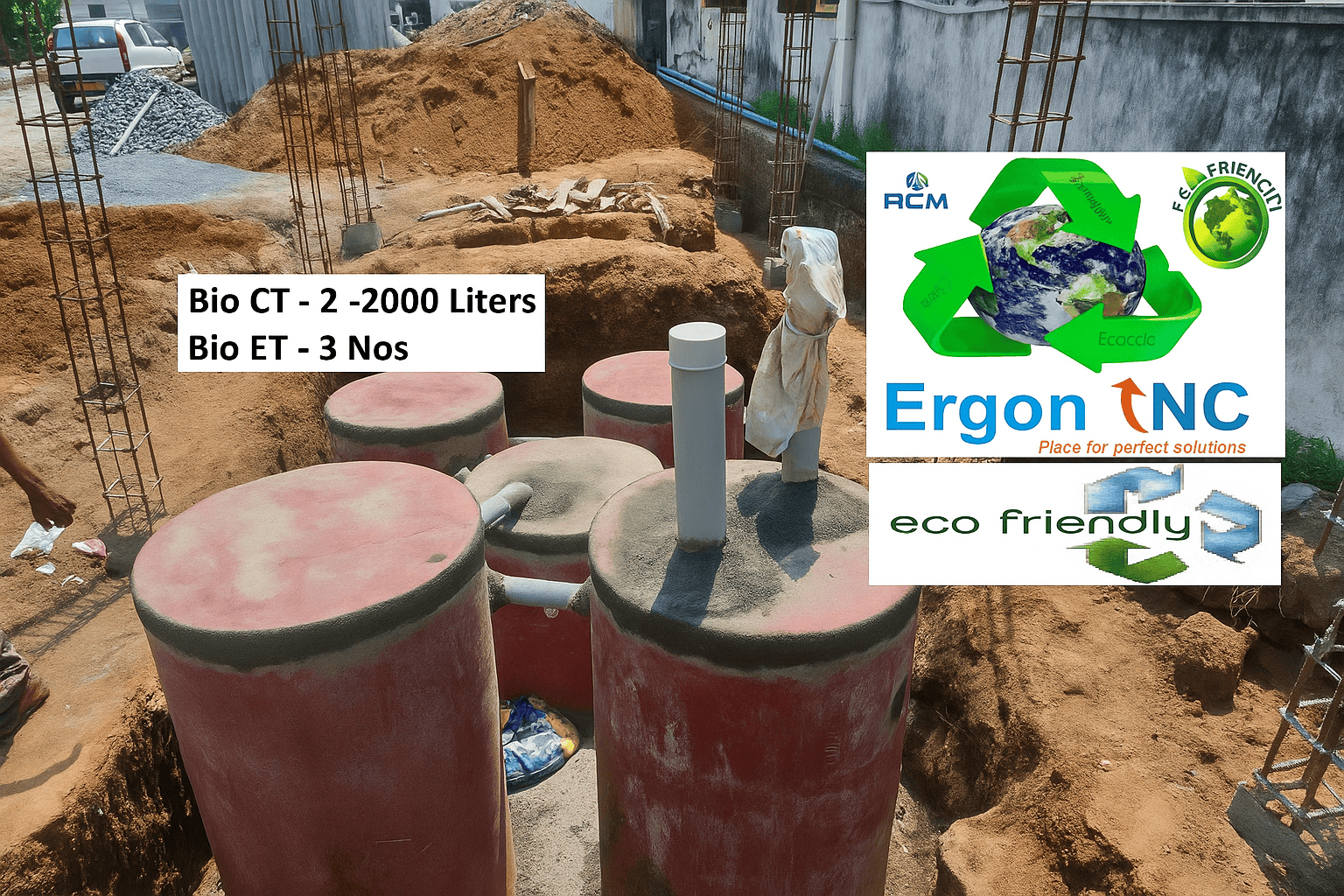

Existing Tank + Bio ET = Bio Septic Tank
✅ Bio Septic Tank Conversion – Key Benefits
✔ No Dismantling Required
Existing septic or collection tanks are upgraded in place, saving civil work, time, and cost.
✔ Bio-Nano Inner Coating Option
Sound RCC tanks can be converted into living anaerobic bioreactors using Bio-Nano microbial coating.
✔ Continuous Anaerobic Digestion
Sustained biological activity enables natural breakdown of fecal matter and organic waste.
✔ Odour-Free Operation
Eliminates hydrogen sulphide (H₂S), ensuring no foul smell inside or around the premises.
✔ Minimal to Zero Sludge Accumulation
Organic solids are biologically digested, eliminating frequent desludging.
✔ Chemical-Free & Eco-Safe
No acids, chlorine, or synthetic chemicals—safe for RCC tanks, plumbing, soil, and groundwater.
✔ Ergon Cleanser® Dosing Alternative
Periodic dosing reactivates dormant microbes and decomposes legacy sludge where coating is not feasible.
✔ Restores Failed or Overloaded Septic Systems
Revives aging or clogged tanks without reconstruction.
✔ Zero Energy Requirement
Operates entirely on natural biological processes—no power or mechanical aeration.
✔ Sustainable & Future-Ready Solution
Converts conventional septic tanks into modern Bio Collection Tanks supporting water reuse and Net-Zero goals.
📜 CPHEEO Manual on Sewerage & Sewage Treatment (2013)
Clause 6.2.1 & 6.2.2
✔ Encourages upgrading existing septic tanks instead of reconstruction
✔ Recognizes biological anaerobic treatment as primary on-site sanitation
Clause 7.4.3
✔ Permits biological treatment systems with low sludge generation
✔ Allows in-situ improvement of septic performance
📜 IS 2470 (Part 1 & Part 2) – Septic Tank Code
Part 1 – Clause 5.1 & 6.1
✔ Septic tanks shall function on anaerobic digestion principles
✔ Upgradation allowed if structural integrity is maintained
Part 2 – Clause 3.3 & 4.2
✔ Sludge reduction through biological stabilization is acceptable
✔ Odour prevention through proper anaerobic conditions
📜 CPCB On-Site Sanitation Guidelines (2020)
Section 4.2 – Decentralized Wastewater Treatment
✔ Supports non-mechanical biological treatment systems
✔ Encourages reuse-ready, low-sludge sanitation models
Section 5.1
✔ Discourages chemical dosing
✔ Promotes microbial-based digestion
📜 National Green Tribunal (NGT)
OA No. 593/2017
✔ Mandates prevention of groundwater contamination
✔ Encourages upgrading septic tanks to bio-based systems
📜 IGBC / GRIHA Green Building Compliance
✔ IGBC Green Homes – Water Efficiency Credit WE-2
✔ GRIHA Criterion 18 – Wastewater Management
✔ Recognizes biological treatment, sludge reduction & reuse readiness
🌿 What is Ergon Clean®?
⚙️ How Ergon Clean® Works
This biological action: The product restores natural anaerobic digestion and improves overall system health.
✔Liquefies hardened sludge. ✔Eliminates foul odour at source.
✔Restores anaerobic biological activity. ✔Prevents choking and overflow issues
♻️ Key Benefits of Ergon Clean®
✔ Complete odour elimination
✔ Prevents overflow and pipeline choking
✔ No chemicals, no electricity required
✔ Extends septic tank and treatment system life
✔ Reduces frequent desludging cost
🏠 Applications – Septic Tank, STP & ETP
✔ Apartments and residential complexes
✔ Hospitals and healthcare facilities, ✔ Hotels, resorts, and lodges
✔ Schools and educational institutions, ✔ Commercial buildings
Failed or underperforming STP & ETP installations
🌍 Sustainability Impact
🌿 Eco-friendly performance 🌿 SAVE OUR EARTH
Ergon Consultation Projects - DPR Based
Regulatory Compliance (DPR Clauses) The implementation follows specific national and environmental mandates:
CPHEEO Manual (Sec. 12.3): Guidelines for primary anaerobic treatment and sizing.
IS 2470 (1985): Compliance with design and construction codes for wastewater treatment.
NBC 2016 (Part 9): Adherence to sustainable green building sanitation standards. Water Act 1974 (Sec. 24): Legal compliance preventing the discharge of pollutants into water bodies.
CPHEEO Manual (Sec. 12.3): Guidelines for primary anaerobic treatment and sizing.
IS 2470 (1985): Compliance with design and construction codes for wastewater treatment.
NBC 2016 (Part 9): Adherence to sustainable green building sanitation standards. Water Act 1974 (Sec. 24): Legal compliance preventing the discharge of pollutants into water bodies.
We installed the product at our Villa House in ECR, Chennai in 2022, and it has been an ideal solution. The erection was simple, and to this day, we have had no issues whatsoever.
The product's effectiveness, combined with our regular buying of the Ergon Bio Cleanser, ensures continuous, worry-free operation. We are extremely pleased with the awesome support provided by the team.
500 Plus Live Villa Projects Across ECR
NAVYA
For years, the persistent issues with our Labor area toilets created a real dilemma for our operations at INOX. We needed an exceptional, long-term solution.
In 2021, Mr. Arun provided exactly that. His expertise and the installation of the bio tank system delivered an exceptional service that instantly gave us peace of mind.
The system's reliability was so complete that we rapidly adopted it at both our Kanji Kode and Hosur units.
Given the proven, worry-free performance across multiple locations, we are now confidently expanding our bio tank infrastructure to every remaining unit across the factory. Mr. Arun's solution is a standard-setter for our company."
100 Plus Live projects in INDUSTRAIL Area
Sreedhar -INOX Chennai
We were recommended the Ergon Bio Tank system by a trusted contact who successfully used it at their hotel. As a resort, our demands were slightly different, but the Ergon solution proved outstanding.
The team delivered timely suggestion and committed, excellent work during installation. The system has been working flawlessly for the past couple of years, providing complete peace of mind. We were so satisfied that we also utilized the Ergon Bio Tank for our swimming pool area facilities."
100 Plus Live Projects in Yelagiri
Mr. Mahavel- Yelagiri
Dealing with the water-logged area in Pallikaranai, Chennai, was a constant challenge until we found the right solution. Since it was erected in 2021, the system has worked flawlessly, with no issues to report.
The support we received was excellent, making the entire process seamless. We consider this a highly recommended, successful product—so much so that I recently referred it for installation at my brother's place. It’s been a fantastic long-term investment."
50 Live Projects in Pallikaranai
Mrs Anuradha Palikaranai
